Bus Air Conditioner Not Working? 7 Real Causes & Field-Tested Troubleshooting for Hot-Climate Fleets

When your bus AC stops cooling but the compressor is still running, the problem is rarely the compressor itself.

In hot-climate fleets across Southeast Asia, the Middle East, Africa, South Asia and Latin America — where ambient temperatures regularly exceed 45 °C — the top three causes account for 78 % of all "bus air conditioner not working" complaints. This guide distills field data by TCHAIN, a bus & coach HVAC specialist.

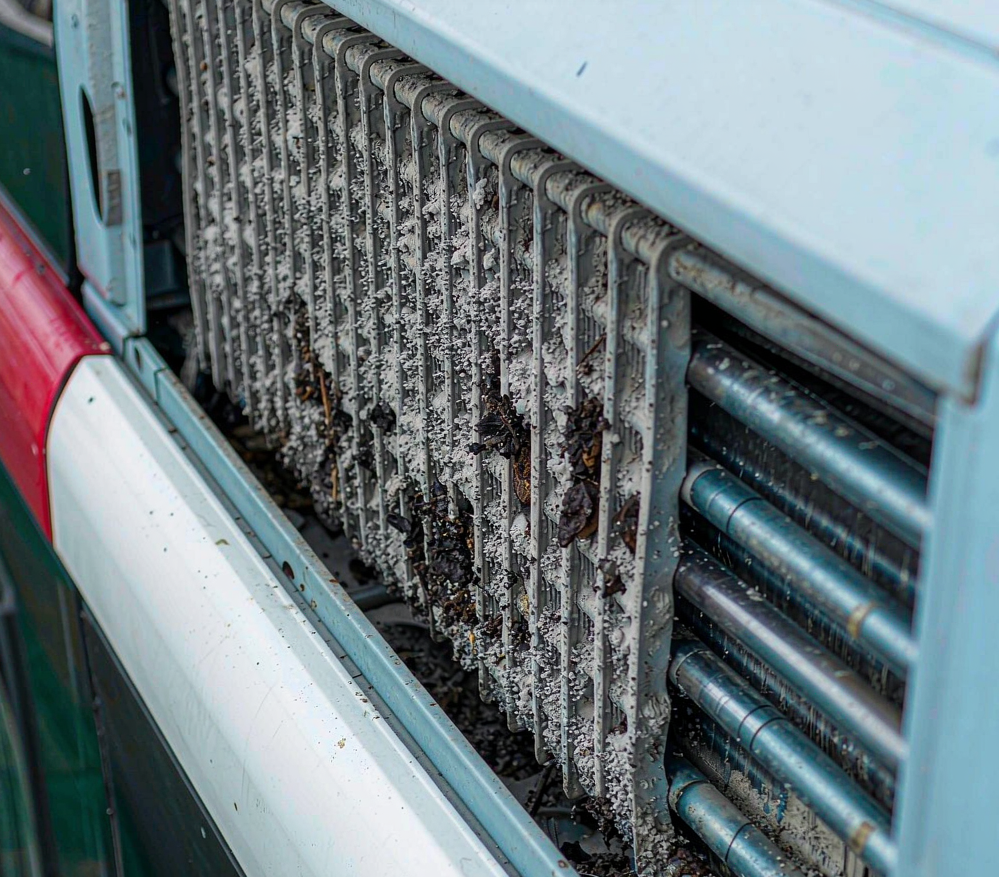

Cause 1: Condenser Blockage (31 % of failures)

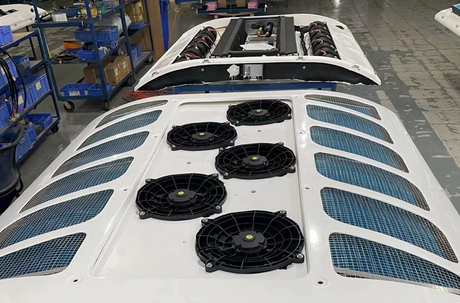

Bus AC condensers are usually rooftop, side-mounted or rear-mounted. In tropical dust + heat, fin surfaces can collect 5–8 mm of debris per month.

• Field check: high-side pressure > 25 bar; supply air 6–10 °C above normal.

• Quick fix: low-pressure water rinse from outside in (avoid electrical connectors).

• Long-term: deep clean every 6 months; install insect screens.

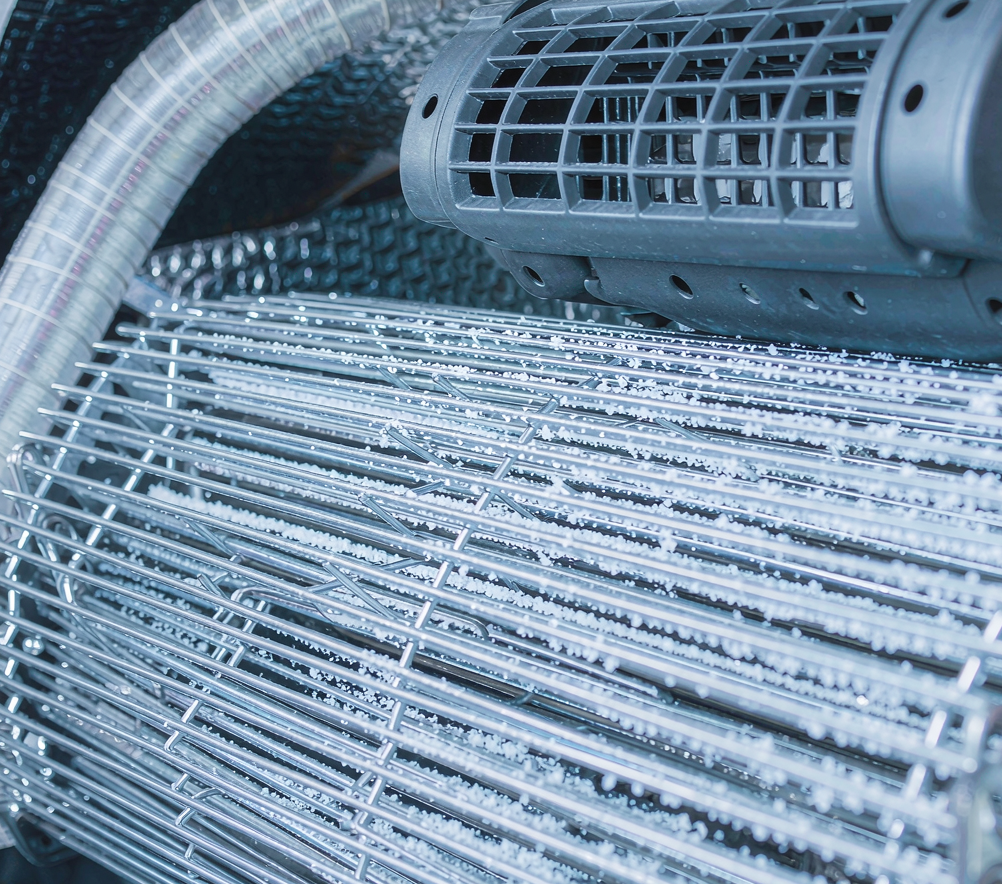

Cause 2: Evaporator Icing (18 %)

When cabin blower speed drops, the TX valve overfeeds, or the cabin filter is clogged, the evaporator ices intermittently. Drivers report "ice at the vents" or "AC shuts off after a few minutes".

• Field check: low-side pressure < 1.5 bar; visible frost on the low-pressure line.

• Quick fix: switch off AC for 15 minutes to defrost, then inspect the cabin filter.

• Long-term: replace cabin filter every 3 months; verify TX valve superheat.

Cause 3: Refrigerant Leak (14 %)

Tropical heat cycles and continuous vibration loosen fittings. R410A loses 8–12 % per year — about twice the rate of R134a.

• Field check: both high and low pressures low; equalised pressure below saturation at ambient.

• Quick fix: leak-detect at the 4-way valve, receiver-drier and fittings.

• Long-term: top-up every 12 months; replace O-rings.

Cause 4: High-Voltage Platform Fault on Electric Buses (11 %)

Electric bus AC runs on DC 420–720 V, not 24 V like trucks. Fault modes are very different:

• HVIL fault

• DC-DC converter abnormal

• Insulation detection alarm

• Field check

• Long-term: specify an ISO 6469-3 / ECE R100-certified rooftop electric bus AC.

Cause 5: Belt-Driven Compressor Failure (9 %)

Conventional ICE bus compressors are belt-driven. Belt slip, tensioner failure and clutch coil burnout all cause "AC not cooling but everything else normal".

• Field check: listen for the clutch "click" cycle; feel the low-pressure line temperature.

• Quick fix: re-tension the belt to 80–100 N·m; replace the belt.

• Long-term: upgrade to an electromagnetic clutch + electric control compressor for high-temperature fleets.

Cause 6: Control Signal Loss (7 %)

Short-circuited temperature sensors, water ingress in the panel and CAN-bus dropouts all send the AC into protection mode.

• Field check: read panel fault codes; measure sensor resistance.

• Quick fix: disconnect the sensor harness for 30 s to force a reset.

• Long-term: specify IP54 panels with dual-redundant temperature sensors.

Cause 7: Return Air & Duct Leakage (5 %)

The most overlooked cause. Long-distance coaches often default to fresh-air mode to fight CO₂ build-up — in 45 °C heat this makes the AC nearly useless.

• Field check: supply-to-return ΔT < 8 °C points to duct leakage.

• Long-term: fit return-air filters; replace duct seals on a fixed schedule.

One-Page Field Checklist
