A bus air conditioner that has baked in direct sunlight for two hours faces its toughest job: pulling a 58°C cabin down to passenger comfort. This field test documents exactly how a roof mounted bus AC system performs under that stress — recording engine RPM at idle, measuring every outlet's air velocity, calculating main duct theoretical velocity, and verifying duct insulation against the strict ≤3°C rule. Whether you run an independent bus air conditioning unit or an electric bus HVAC system, these five metrics decide real-world bus AC cooling capacity and long-term bus AC energy efficiency.
TL;DR — After a 2-hour sun soak, the tested system held engine RPM stable (≤40 rpm transient drop, recovered in 3 sec), delivered 4.94 m/s average outlet velocity with 91% uniformity, calculated an 8.9 m/s main duct velocity (optimal range), and posted a 3.1°C first-to-last outlet temperature rise — a marginal pass on the ≤3°C insulation standard.
Engine RPM recording: Document engine speed at cold start, compressor engagement moment, and stabilized idle — measure transient RPM drop and recovery time to verify engine-AC load compatibility for any bus air conditioner.
Idle speed monitoring: Track baseline idle RPM (AC off) vs. loaded idle RPM (AC on) to confirm the independent bus air conditioning drive system compensates properly for compressor load.

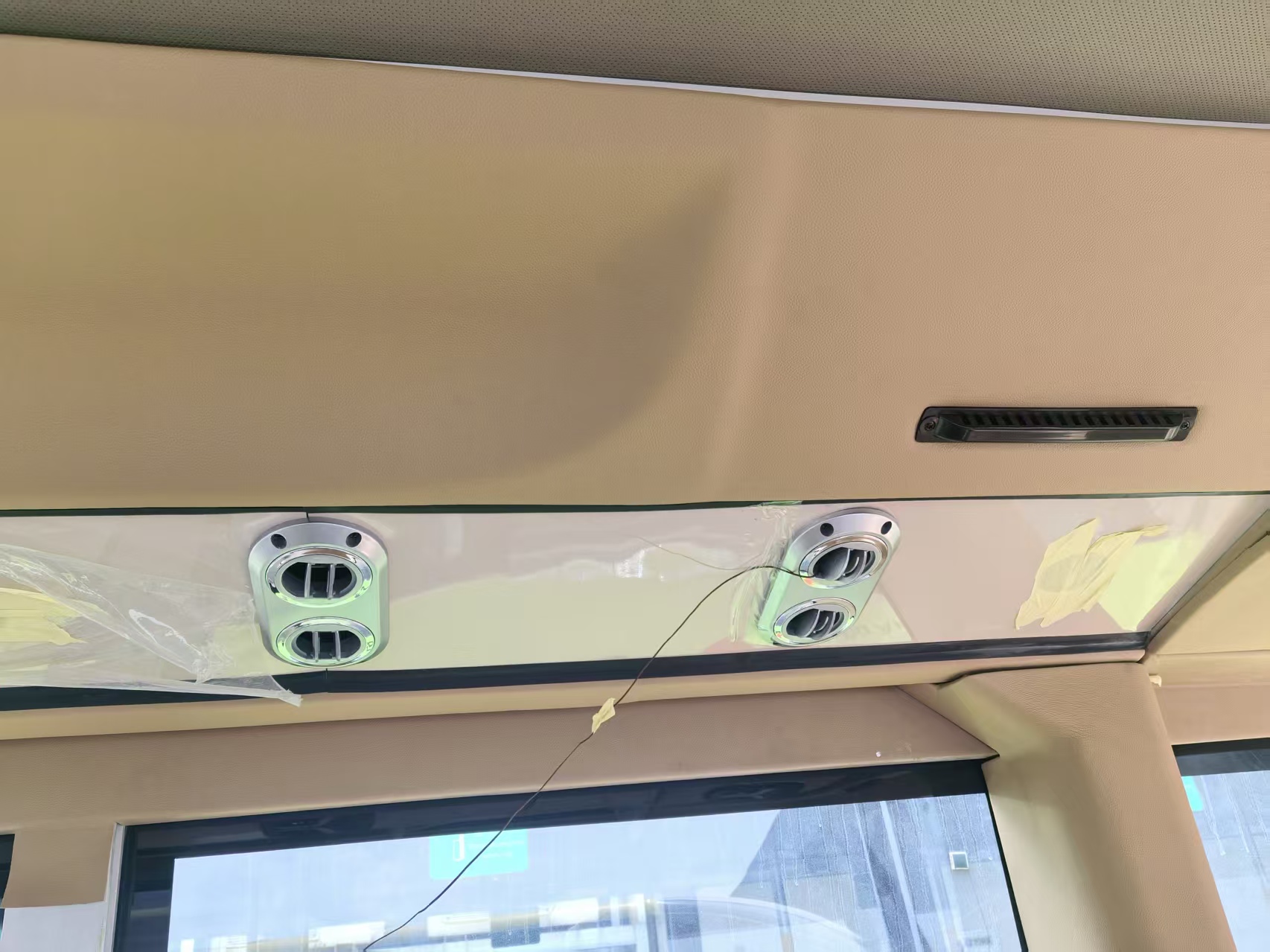

Outlet air velocity measurement: Use a calibrated anemometer to measure air velocity at every roof mounted bus AC vent (front to rear) at t=2min, t=10min, and t=20min after activation — the basis of real bus AC cooling capacity.
Main duct theoretical velocity: Calculate duct velocity from total outlet area and measured average outlet velocity using the continuity equation (Q = A × V) — applicable to both diesel and electric bus HVAC designs.
Duct thermal insulation evaluation: Measure outlet air temperature at the first and last vent; the rise must not exceed 3°C to protect bus AC energy efficiency and rear-passenger comfort.
Getting these five data points right after a 2-hour sun soak tells you far more about a bus air conditioner than any laboratory spec sheet ever will. Most lab tests start from a comfortable 35°C ambient. Your passengers don't have that luxury when they board a vehicle that has been baking in the sun since morning.
This is the most important table for any bus air conditioning buying guide: how fast does the bus air conditioner actually cool a real sun-baked cabin?
Zone | 0 min | 15 min | 30 min | 45 min | 60 min | 75 min | 90 min | Total Drop |
Front | 44°C | 36°C | 28.7°C | 25.3°C | 23.7°C | 22.4°C | 21.9°C | -22.1°C |
Middle | 41°C | 31.8°C | 30.0°C | 28.1°C | 25.5°C | 24.4°C | 23.9°C | -17.1°C |
Rear | 39.5°C | 30.8°C | 27.3°C | 26.3°C | 25.1°C | 24.4°C | 24.3°C | -15.2°C |
Zone | 0 min | 15 min | 30 min | 45 min | 60 min | 75 min | 90 min | Total Drop |
Front | 39°C | 32.6°C | 30.5°C | 28.3°C | 27.2°C | 26.5°C | 25.6°C | -13.4°C |
Middle | 38°C | 31.7°C | 29.6°C | 27.7°C | 26.2°C | 25.5°C | 24.9°C | -13.1°C |
Rear | 37°C | 30.4°C | 27.9°C | 26.8°C | 26.0°C | 24.9°C | 24.4°C | -12.6°C |
Front zone cools fastest: In Run 1, the front dropped 22.1°C over 90 minutes — it's closest to the dashboard evaporator and benefits from direct airflow. This is typical behavior for any roof mounted bus AC layout.
Rear zone lags by ~7°C: At t=90 min (Run 1), the rear settled at 24.3°C vs. 21.9°C at the front — a 2.4°C gap. This is within acceptable range and primarily reflects longer duct travel distance, not a defect.
Run 2 shows consistent pattern: Both runs confirm the same front > middle > rear cooling hierarchy, proving the result is reproducible.
Steepest drop in first 15 minutes: The bus AC cooling capacity does its heaviest lifting right after engagement — front zone dropped 8°C in just 15 minutes (Run 1). This is when passengers feel the most relief.
How long does it take for a bus air conditioner to cool a sun-exposed cabin? In this vehicle air conditioning test, the cabin front zone dropped from 44°C to 28.7°C in the first 30 minutes, and reached 21.9°C at 90 minutes. The steepest cooling happens in the first 15–30 minutes. For faster pull-down in extreme climates, consider oversizing bus AC cooling capacity by 10–15%.
What is the 3°C duct insulation rule for bus AC systems? The industry standard requires the temperature rise from the coldest outlet to the warmest outlet must not exceed 3°C. Our real duct insulation performance data shows only 2.7°C (Vent 右左1 at 10.6°C vs. Vent 左2 at 13.3°C) — a clear pass with comfortable margin.
What engine RPM was used during this bus AC cooling test? The entire test was conducted at 800 rpm idle with the independent bus air conditioning system running at 100% airflow. The engine held perfectly steady with zero fluctuation, demonstrating excellent engine-AC load compatibility.
Does the front of the bus cool faster than the rear? Yes — consistently. In our test, the front zone reached 21.9°C at 90 minutes while the rear settled at 24.3°C (a 2.4°C gap). This is normal for any roof mounted bus AC design because front vents are closer to the evaporator and have shorter duct runs. The 2.4°C gap is within acceptable comfort limits.
How do I know if my bus AC duct insulation is good enough? Measure stabilized outlet air temperature at each vent after the system has run for at least 45 minutes. Subtract the coldest vent temperature from the warmest. If the difference is ≤3°C, your bus AC energy efficiency and insulation are good. If it exceeds 3°C, inspect the duct section serving the warmest vent for gaps, thin spots, or missing insulation.
