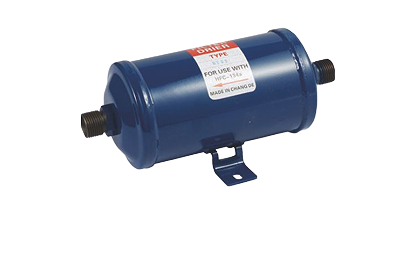

C2-32 Kingtec KT22 Filter Drier Φ90x230 5/8 OR Port for Large Bus AC

The C2-32 Kingtec KT22 filter drier is an oversized heavy-duty refrigerant purification component specially developed for full-size 10–12m large bus air conditioning systems. With outer dimension Φ90×230mm, it features thicker shell wall and bigger internal storage space compared to standard driers, equipped with built-in mounting foot and standard 5/8 OR thread connectors compatible with mainstream large coach liquid pipelines.

Installed between condenser and expansion valve on high-pressure liquid line, it integrates three core functions: intercepting metal pipeline debris, absorbing residual water vapor inside refrigeration loop, and buffering surplus liquid refrigerant flow fluctuation. It effectively prevents expansion valve ice blockage, compressor cylinder abrasion and acid corrosion, ensuring stable cooling output under extreme high-temperature summer operating conditions.
