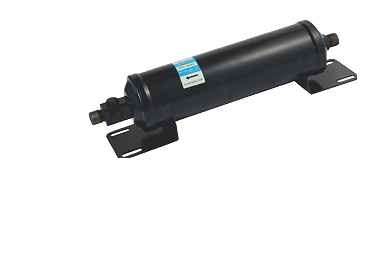

C3-22 Jiexin A2 Receiver Filter Drier Φ76x365 5/8 Eco Port With Dual Mount Brackets for Large Bus AC

The C3-22 Jiexin A2 integrated receiver filter drier is an oversized all-in-one refrigeration component designed exclusively for full-size heavy-duty bus air conditioning systems. Different from separate receiver tank and filter drier, this long Φ76×365 cylinder combines refrigerant storage and dual-stage purification into one assembly, simplifying pipeline layout and reducing installation space occupation for large coach rooftop AC units.

Installed on high-pressure liquid pipeline between condenser and expansion valve, the ultra-long internal cavity holds massive molecular sieve desiccant and full-length multi-layer stainless steel filter mesh. It stores surplus liquid refrigerant to balance flow fluctuation under extreme high-temperature full-load operation, while continuously removing residual water vapor and metal pipeline debris from refrigerant, dual protection to prevent expansion valve ice clogging and compressor cylinder abrasion.
