How Bus Air Conditioners Work: A Technical Overview

Bus air conditioning systems are engineered to cool large, crowded passenger spaces efficiently while withstanding constant vibration, variable engine speeds, and harsh outdoor conditions. Unlike residential or car AC units, bus HVAC systems must deliver consistent cooling across 6–12 meter cabins with dozens of passengers. This guide explains the core technology behind how bus air conditioners work.

The Basic Refrigeration Cycle

All bus air conditioners operate on the same vapor-compression refrigeration cycle found in most cooling systems. The process repeats continuously to remove heat from the cabin and release it outside.

1. Compression

The cycle begins at the compressor, which draws in low-pressure, low-temperature refrigerant vapor and compresses it into a high-pressure, high-temperature gas. This is the heart of the system — in traditional buses it is driven by the engine via a belt, while in electric buses it runs on a built-in electric motor.

2. Condensation

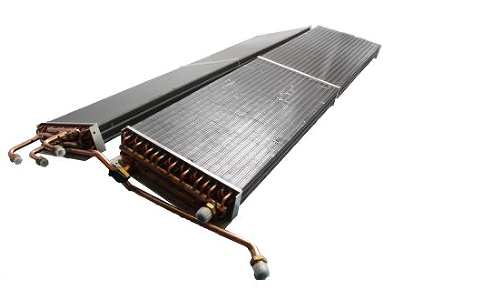

The hot, pressurized refrigerant flows into the condenser coil located on the roof of the bus. Condenser fans pull outside air across the coil, causing the refrigerant to release heat and condense from a gas into a high-pressure liquid.

3. Expansion

The liquid refrigerant then passes through an expansion valve (or thermostatic expansion valve, TXV), which rapidly reduces its pressure. This pressure drop causes the refrigerant to partially vaporize and drop significantly in temperature.

4. Evaporation

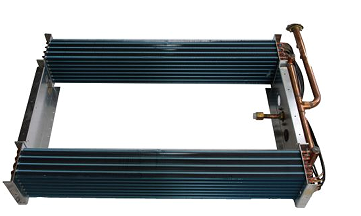

The cold, low-pressure refrigerant enters the evaporator coil inside the air handler. Cabin air is blown across the evaporator by internal blowers, absorbing heat from the air and cooling the passenger cabin. The refrigerant absorbs the heat and evaporates back into a low-pressure gas, returning to the compressor to restart the cycle.

Two Main Types of Bus Air Conditioning Systems

Engine-Driven Bus AC Systems (Traditional Fuel Buses)

This is the conventional design used on diesel and CNG buses.

• The compressor is mounted on the engine and driven by a belt connected to the engine crankshaft

• Cooling capacity depends on engine RPM — lower at idle, higher at cruising speed

• Typically uses 12V or 24V vehicle electrical power for fans and controls

• Most widely used in school buses, city buses, and coach buses with internal combustion engines

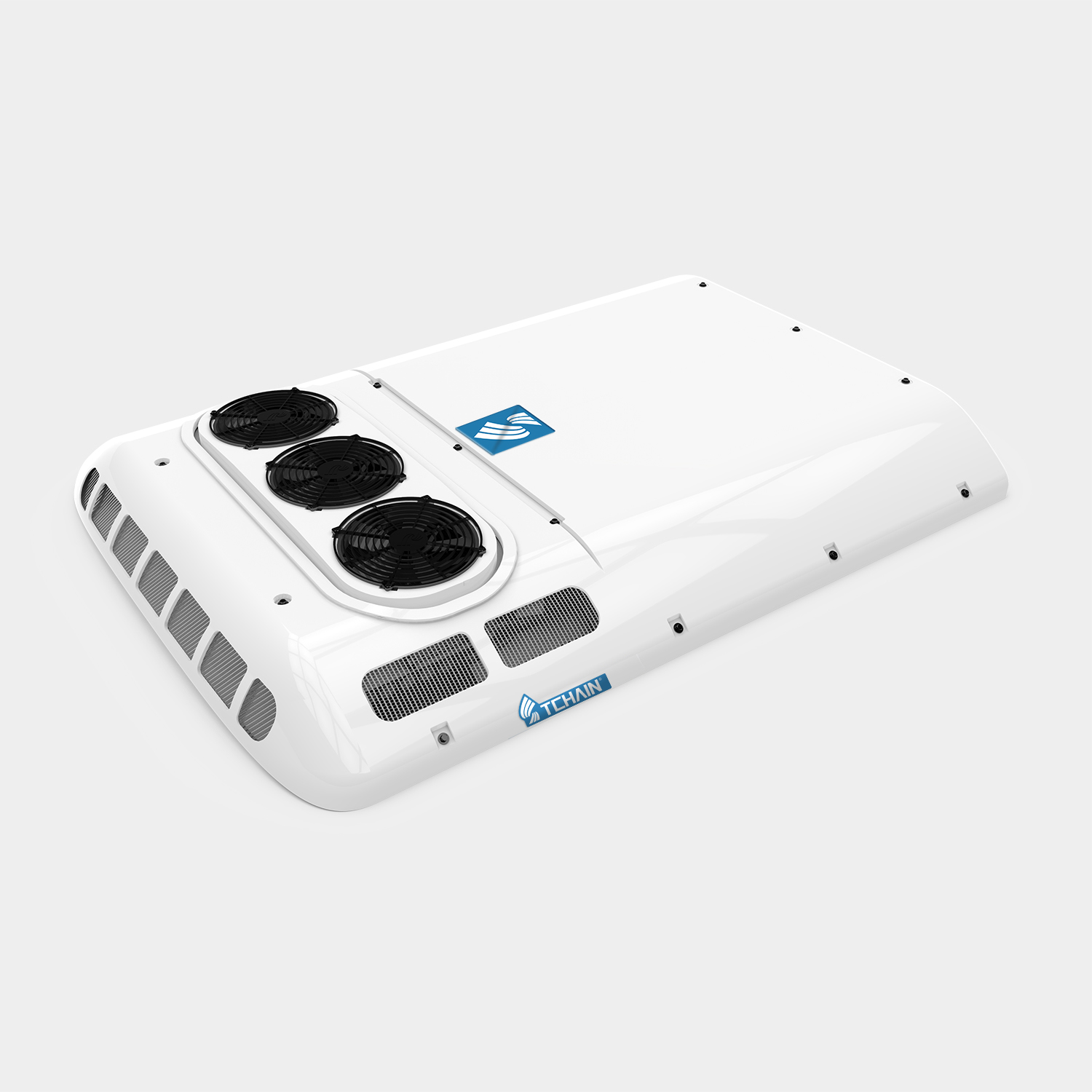

• TCHAIN offers a full range of engine-driven bus air conditioners for 5–8.5 meter buses, including models like TCH07GZ and TCH08KB.

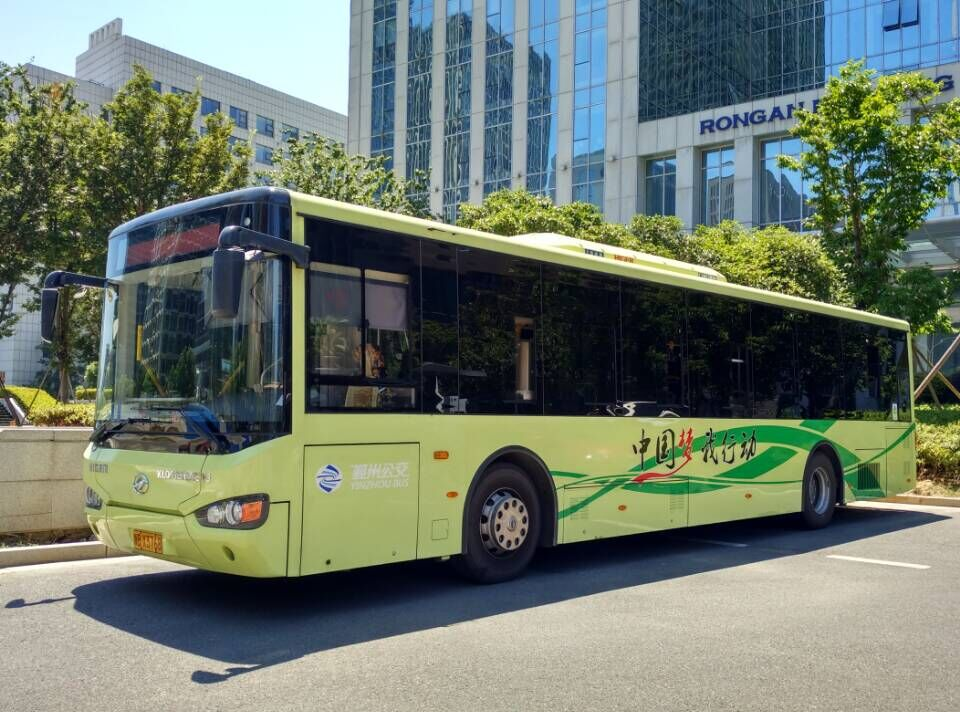

Electric Bus Air Conditioning Systems (New Energy Buses)

Designed for battery electric buses (BEV) and hydrogen fuel cell buses.

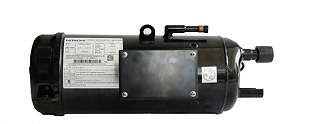

• Uses a fully electric scroll compressor powered directly by the vehicle's high-voltage DC battery (typically 420V–720V)

• Cooling performance is independent of vehicle speed, delivering consistent capacity at idle

• Features intelligent inverter control for precise temperature regulation and energy savings

• Requires higher IP rating (often IP67) for electrical components to ensure safety and durability

• Electric systems are rapidly becoming the standard for new public transport fleets worldwide.

Core Components of a Bus Air Conditioner

Every bus AC system is made up of these essential parts working in sync:

• Compressor: Pumps refrigerant through the system and raises its pressure. The most critical component.

• Condenser Assembly: Roof-mounted coil with fans that rejects heat to the outside air.

• Evaporator Assembly: Internal coil that cools cabin air before it is distributed through ductwork.

• Expansion Valve: Regulates refrigerant flow into the evaporator and controls cooling output.

• Blower Motors & Fans: Circulate cabin air across the evaporator and outside air across the condenser.

• Refrigerant: The working fluid — modern systems use R134a or environmentally friendly R407C / R454C.

• Control Panel & Controller: The electronic brain that manages temperature, fan speed, and system protection logic.

• Receiver Drier / Filter: Removes moisture and contaminants from the refrigerant to protect the compressor.

How Bus AC Differs From Car Air Conditioning

Bus systems face unique challenges that car AC units do not:

• Much larger cabin volume and higher passenger heat load

• Must operate reliably for 8–16 hours daily in heavy-duty cycles

• Roof-mounted design to save interior space and optimize airflow

• Built to withstand constant road vibration, dust, and rain

• Higher cooling capacity — typically 10kW–30kW versus 3kW–5kW for a car

Final Thoughts

Understanding how bus air conditioners work helps fleet operators make better purchasing decisions and perform more effective maintenance. Whether you operate traditional engine-driven buses or modern electric fleets, the underlying refrigeration principle remains the same — what differs is how the compressor is powered and how the system is controlled.

For fleet managers and bus OEMs looking for reliable, heavy-duty bus AC solutions, TCHAIN provides both engine-driven and fully electric air conditioning systems certified to IATF 16949 standards, serving leading bus manufacturers worldwide.
