Japan's Bus Culture And Cabin Comfort: Bus Air Conditioner Selection Guide
Home » News » Japan's Bus Culture And Cabin Comfort: Bus Air Conditioner Selection Guide

Japan's Bus Culture And Cabin Comfort: Bus Air Conditioner Selection Guide

Views: 0     Author: Site Editor     Publish Time: 2026-10-27      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Key takeaways

  • Japan's bus culture has two layers: a punctuality-driven operations culture, and a vehicle culture that treats passenger comfort as a service standard. Bus HVAC belongs to the second.

  • Weak cooling is rarely a failed unit. It is usually a sizing mismatch, or heat load the duty cycle adds at stops and low speed.

  • For Japan's 12 m full-size bus, 28,000–32,000 kcal/h is a working reference. On an electric bus, capacity has to be balanced against range, not maximized.


1. Background: Japan's bus culture runs on two layers

In short: Japan's bus culture is built from an operations culture that protects the timetable and a vehicle culture that treats passenger comfort as a service standard. Air conditioning sits at the centre of the second layer.

1.1 Punctuality as an operating culture

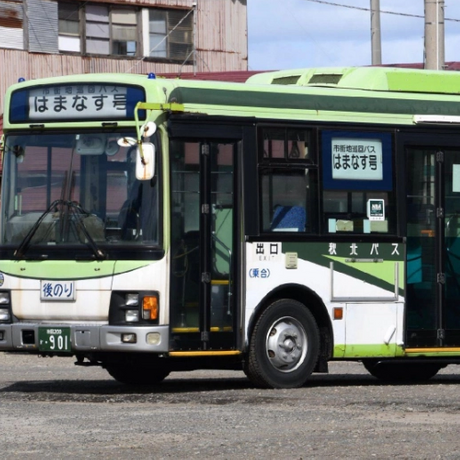

Japanese route buses keep close to their published timetables even on low-density rural lines. What makes that possible is a stack of quiet enablers: operations management systems, bus location systems that feed real-time arrival data, IC card fare payment that keeps boarding fast, and the long-settled practice of one-person operation. Boarding that takes seconds produces punctuality; punctuality produces trust. That loop is the foundation of the culture.

The consequence for engineering is easy to miss. Because Japan's buses compete on accuracy rather than speed, the quality of time spent inside the vehicle — heat, cold, stale air — is read directly as a judgment on service quality. Cabin climate is not an accessory on a Japanese bus; it is part of the timetable promise.

1.2 The chassis-and-body split shapes HVAC design

On the vehicle side, domestic manufacturers carry the chassis: Isuzu, Hino, Mitsubishi Fuso and UD Trucks. The bodies are finished by coachbuilders such as J-Bus and Mitsubishi Fuso Bus Manufacturing. That division of labour has a direct effect on air conditioning, because mounting position, duct routing and the margin built into capacity are all decided across a chassis/body interface rather than inside one design team.

There is a second point specific to Japan: the full-size bus is a 12 m class vehicle. In markets where 13 m and 14 m coaches are normal, the sizing conversation starts somewhere else. In Japan, the 11–12 m class is where selection work happens, which is why that row of any fitment table matters most to Japanese buyers.

1.3 Route, charter and highway buses define comfort differently

"Bus air conditioner" covers very different jobs. Ride duration and stop frequency set the shape of the heat load, so the right unit for a city route is usually wrong for a coach.

Duty

Typical ride time

What the HVAC must do

Recurring problem

City route bus

5–60 min

Hold cabin temperature through constant stop-start and recover quickly after each door cycle

Heat influx at stops, poor heat rejection at low speed

Charter / tour coach

Several hours

Even airflow, low noise, comfort that shows up in customer satisfaction

Solar gain, high passenger load, long continuous running

Intercity coach

2–8 hours

Stability over long runs, tracking changes in ambient conditions

Sustained load at speed, temperature spread on overnight runs

School / shuttle

15–60 min

Pull-down speed, tolerance of very frequent door cycles

Peaked dawn and dusk operation, heat rejection while stationary

1.4 Barrier-free rules changed where the equipment goes

The spread of low-floor, step-free buses changed the design envelope. Floors came down, headroom got tighter and duct routing lost options. As a result, roof-mounted units stopped being the default answer, and built-in units installed inside the vehicle became the practical choice wherever height, appearance or floor structure constrains the roof. A policy decision about accessibility ended up reshaping air conditioning packaging.

2. The problem: four structural pressures on bus HVAC in Japan

In short: when a bus will not cool, the cause is more often a sizing mismatch or a changed duty cycle than a failed component. Triaging the symptom into a cause is the first step of the fix.

2.1 Humid summers and the stop-and-go heat load

A Japanese summer is a humidity problem as much as a temperature problem, so the unit has to handle latent load — dehumidification — and not only sensible heat. At the same ambient temperature, perceived comfort swings widely with moisture content.

Route buses add a second penalty. They spend much of the shift stopped or crawling, which means little or no ram air across the condenser. Heat rejection weakens, discharge pressure climbs and delivered capacity falls below the rating. Door openings push hot air in, and the roof takes direct sun. City route buses stack all three at once, which is why "the air conditioner is too small" is often really "the duty cycle was never in the sizing calculation".

2.2 The 2024 driver-hours rule shrinks maintenance windows

From April 2024, Japan applies an overtime cap to vehicle driving work — widely called the 2024 problem in the industry. Operators have had to rebuild running boards, and maintenance departments have come under pressure to keep vehicles in service and out of the workshop.

Run-to-failure maintenance is a poor fit for that reality: it fails at the worst possible moment, in peak season. With fewer hours available, the practical answer is to move toward preventive maintenance that kills faults before they take a bus off the road.

2.3 Electrification ties AC power directly to range

On an electric bus, air conditioning draws from the traction battery. Raising cooling capacity improves comfort and shortens range — a trade-off that simply did not exist when the compressor was driven by an engine.

So an EV bus has to optimize three things at once: cooling capacity, power draw and vehicle class. High-voltage units in the DC 420–750 V band and heat-pump heating widen the options, but specifying on capacity alone tends to produce a vehicle that cannot finish its route in summer.

2.4 Refrigerant rules raise the skill bar

R134a and the other HFC refrigerants used in bus air conditioning are covered in Japan by the Act on Rational Use and Proper Management of Fluorocarbons, which requires recovery and record-keeping when a system is serviced. Because models differ — R134a, R410A, R407C — charging and recovery need the right equipment and a documented process.

Early leak detection is where accuracy pays. TCHAIN uses helium leak detection in place of the older water-bath method, testing to roughly 5 g/year (about 1 × 10⁻⁶ Pa·m³/s) before a unit ships. Killing a marginal leak before delivery is cheaper than answering for lost capacity and released refrigerant three years later.

2.5 Symptom-to-cause triage

The first job on the floor is to turn a symptom into a short list of candidate causes. Use this as the starting point.

Symptom

Likely cause

What to check

Weak or slow cooling

Low refrigerant charge, blocked evaporator, fouled condenser

Charge, filters, condenser cleanliness

Only part of the cabin cools

Duct leakage, airflow imbalance, blower fault

Duct joints, outlet airflow, blower current draw

Cools while moving, fades when stopped

Heat rejection dependent on ram air

Condenser fans, ambient temperature, dwell time

Noise or vibration

Compressor, mounts, fan bearings

Source location, correlation with engine or fan speed

Water dripping inside

Blocked drain, obstructed drain path

Drain hose, drain outlet

Sudden range loss on an EV bus

Rising AC power draw, setpoint never reviewed

AC energy consumption, ambient, schedule


3. The fix: a five-step process for selecting a bus air conditioner

In short: decide in this order — capacity (kcal/h), power supply, mounting architecture, refrigerant, then support. Working the other way round forces you to give up capacity later to satisfy a vehicle constraint.

Step 1 — Fix the vehicle class and duty cycle

Write down length, seating capacity, duty (route, charter, intercity, shuttle) and the climate of the operating region. For Japan, the 12 m full-size bus sets the frame, so the 11–12 m class is the first row to look at. Once vehicle class is fixed, the candidate list narrows by itself.

Step 2 — Derive the required cooling capacity

Shortlist from the manufacturer's fitment table by length and duty, then correct for passenger load, solar gain, dwell time, door-opening frequency and regional climate. Bigger is not automatically better: perceived temperature only falls when condensing capacity and cabin airflow distribution keep pace with the nominal rating. Chasing a number raises power draw and weight without buying comfort.

Unit note: Asian bus air conditioner catalogues rate capacity in kcal/h. 1 kW ≈ 860 kcal/h, so 32,000 kcal/h ≈ 37 kW of cooling.

Step 3 — Narrow the field by power supply

Power supply is the hardest constraint in the whole process. Diesel and electric vehicles draw from entirely different families of units.

Power supply

Representative series

Application and caution

DC 12 V / DC 24 V (engine driven)

TCH05B, TCH07GZ, TCH07IZ, TCH08A, TCH09MB, TCH11SA, TCH12TC, TCH13V

Conventional route, charter and intercity buses. Confirm vehicle-side power and alternator capacity first

DC 420–750 V (high voltage)

TCD07A, TCD07D, TCD08D, TD40A, TCD12D

Electric buses. Balance cooling capacity against power draw and range

DC 24 V (built-in)

TCN07E, TCN07H, TC33NB, TC42NB, TC45N2

Vehicles with space constraints: headroom, appearance, low-floor structure

Step 4 — Choose the mounting architecture

A roof-mounted unit keeps the cabin clear and is easy to reach for service. A built-in unit wins when headroom, external appearance or a low-floor structure constrains the roof. On Japanese route buses, where step-free access and usable interior space both have to be satisfied, this choice has become more important every year — and it is the step most often skipped.

Step 5 — Confirm refrigerant, spares and support

Finally, confirm refrigerant type (R134a, R410A, R407C), how long spares will be available, and whether diagnostics and technical support come with the unit. Two units with identical ratings are not equivalent if one can be repaired in two days and the other in two months. Evaluate the hardware and the support network as one purchase.

Vehicle-class quick reference

Vehicle class

Conventional (engine)

Electric bus

Built-in (in-cabin)

5–6 m

TCH05B — 8,000 kcal/h, DC 12/24 V

—

—

6–7 m

TCH07GZ — 16,000 kcal/h, DC 12/24 V

TCD07A — 16,000 kcal/h, R407C

TCN07E — 14,000 kcal/h

7–8 m

TCH07IZ — 18,000 kcal/h

TCD07D — 18,000 kcal/h, R410A

TCN07H — 16,000 kcal/h (7–7.5 m)

8–9 m

TCH08A — 22,000 kcal/h

TCD08D — 24,000 kcal/h (8–8.5 m)

—

9–9.5 m

TCH09MB — 24,000 kcal/h

—

—

10–10.5 m

—

TD40A — 28,000 kcal/h

—

10.5–11.5 m

TCH11SA — 28,000 kcal/h

—

—

11–12 m

TCH12TC — 32,000 kcal/h, DC 24 V

TCD12D — 32,000 kcal/h

TC33NB — 32,000 kcal/h

11–12 m double-deck

—

—

TC42NB — 42,000 kcal/h

13–14 m

TCH13V — 35,000 kcal/h

—

TC45N2 — 45,000 kcal/h (12–13 m)

Figures are rated cooling capacity. Actual fitment depends on the vehicle's power supply, roof height and duct design. Send vehicle specifications for confirmation.

4. Prevention: daily checks and a maintenance design that cuts failures

In short: one pre-season inspection plus five minutes a day prevents most serious failures. Breakdowns rarely arrive out of nowhere; they develop over weeks, and the signs are visible if someone is looking.

4.1 Five checks for every walkaround

  1. Airflow and temperature at the outlets — check side to side and front to back. One weak side points to ducting or airflow distribution, not to capacity.

  2. Noise and vibration — compressor, fan and mount wear show up as sound before they show up as failure.

  3. Filters and heat exchangers — dust, leaves and insect buildup are the single most common cause of lost capacity.

  4. Condensate drain — a blocked drain puts water into the cabin and onto interior trim and passengers' clothing.

  5. Signs of refrigerant loss — oil staining at pipe joints, or cooling that degrades slowly over weeks.

4.2 Pre-season inspection (April–May)

  • Verify refrigerant charge and record high-side and low-side pressures as a trend baseline

  • Clean the condenser — restored heat rejection shows up directly as restored capacity

  • Electrical checks: connector seating, fuses, harness insulation damage

  • Confirm control board setpoints and firmware

  • Check duct airtightness — cold air leaking at joints is capacity you already paid for

4.3 Records are what catch the next failure

Keep measured cooling performance, refrigerant added, parts replaced and work dates against each vehicle number. Three years of entries gives you a trend line. With a trend you can act in the quiet season instead of the week before peak. Maintenance records are also what turns "should we replace it?" from an argument into an arithmetic.

4.4 When replacement beats repair

A rule that works in practice: once repair cost passes a set share of the replacement cost, start the replacement case. And with refrigerant policy moving in stages, replacing into a model designed for the current refrigerant usually lowers cost over five to ten years. Compare total ownership — service cost and downtime included — rather than the price of the box alone.


5. Frequently asked questions

Q1. How do I size a bus air conditioner?

A. Shortlist by vehicle length and duty from the manufacturer's fitment table, then adjust for passenger load, solar gain, dwell time and door-opening frequency. For a 12 m full-size bus, 28,000 to 32,000 kcal/h is a working reference.

Q2. Why does cooling fade when the bus stops?

A. At stops and low speed there is no ram air across the condenser, so heat rejection drops. Check condenser fan output, condenser fouling and refrigerant charge, in that order.

Q3. How much range does air conditioning cost on an electric bus?

A. No single figure applies, because vehicle mass, climate, setpoint and passenger load all shift it. Cooling capacity and power draw must be optimized together at the design stage.

Q4. Which refrigerant do bus AC units use, and what are the rules?

A. Units use R134a, R410A or R407C depending on model. In Japan, the Act on Rational Use and Proper Management of Fluorocarbons requires recovery and record-keeping when the system is serviced.

Q5. Can air conditioning be fitted to a double-decker or a low-floor bus?

A. Yes. Where headroom is limited, a built-in unit is the better answer. For an 11 to 12 m double-decker there is a 42,000 kcal/h class unit, model TC42NB.
