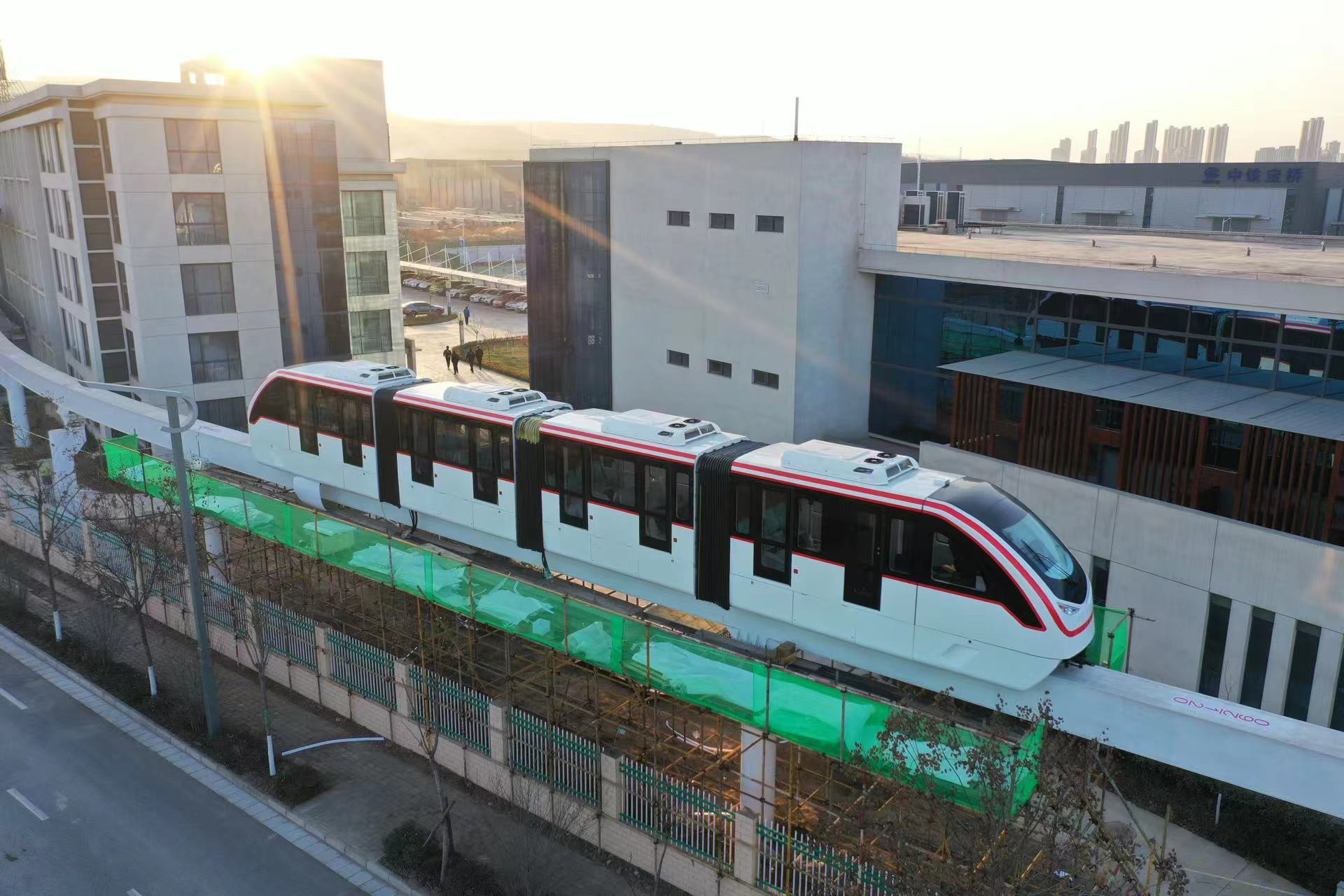

TCD07A Rooftop Bus Air Conditioner Installed on Baoji Sightseeing Mini Monorail Train

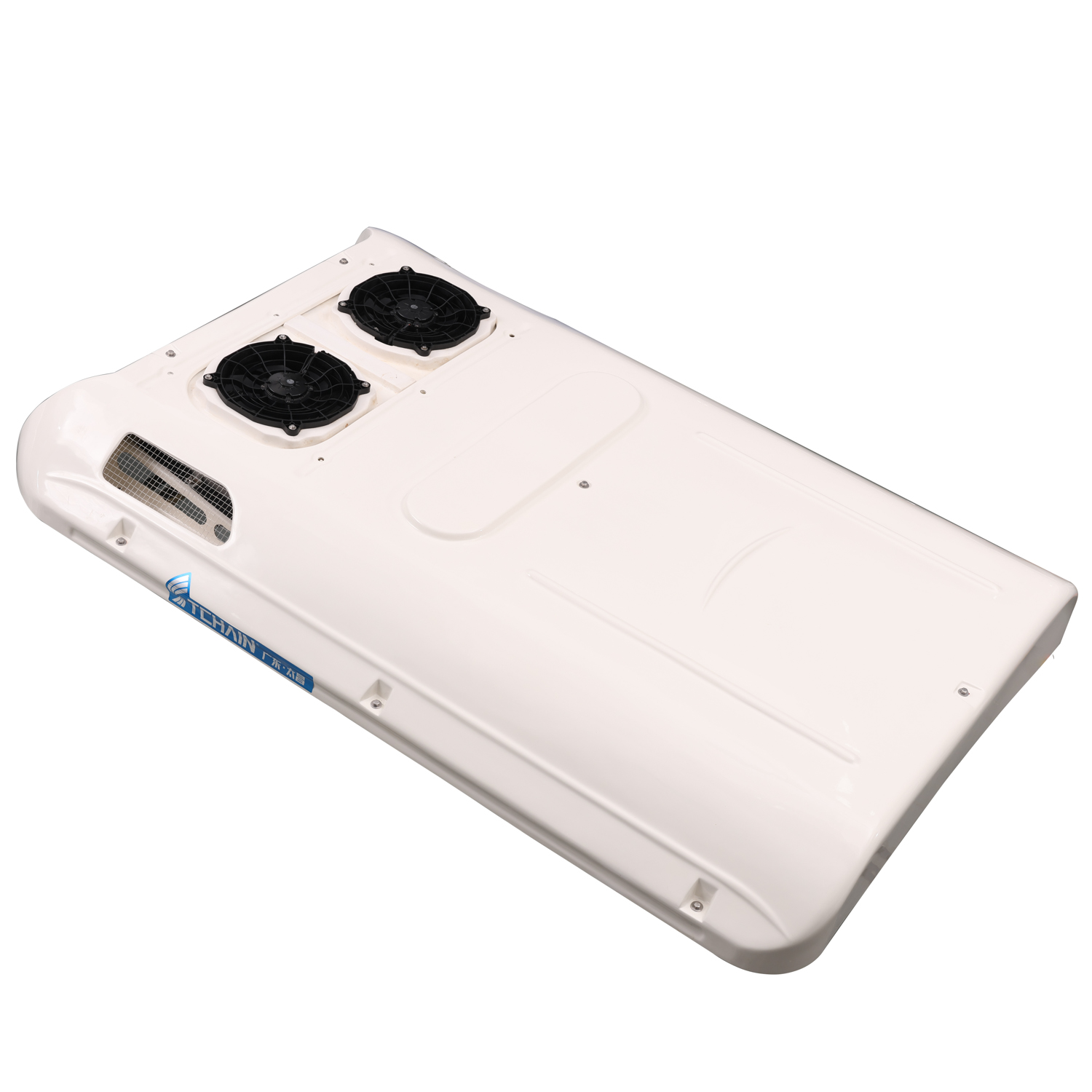

TCHAIN, a professional manufacturer of new energy bus air conditioners, supplies the TCD07A rooftop air conditioner for the Baoji sightseeing mini monorail train project. This compact light rail air conditioning unit is specially engineered for 6.0–7.0m small sightseeing vehicles, mini monorails and short-body electric shuttle buses, perfectly matching the structural and power demands of Baoji’s tourist monorail carriages.

Why Baoji Sightseeing Mini Train Chooses TCHAIN 6-7m Bus Air Conditioner

The Baoji scenic mini monorail adopts lightweight vehicle design with limited roof installation space. As a dedicated air conditioner for 6 to 7 meters electric vehicles, the TCD07A rooftop AC unit solves the core pain points of small sightseeing rail transit:

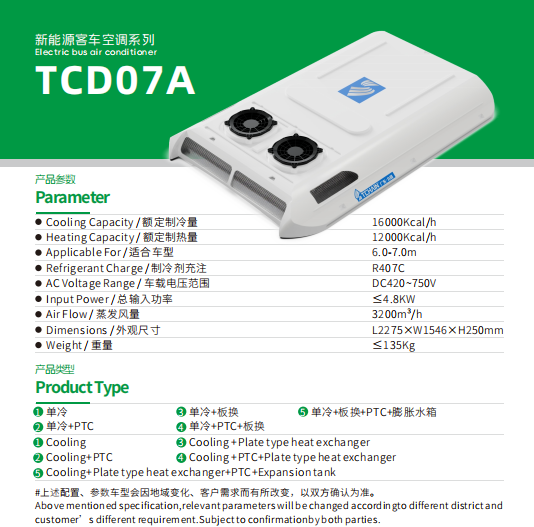

1. Compact lightweight body: Overall dimension L2275×W1546×H250mm, total weight ≤135kg, no extra load burden for mini monorail car bodies;

2. Wide voltage compatibility: DC420V–750V working voltage range, fully compatible with the power system of new energy sightseeing mini trains;

3. Low energy consumption: Total input power ≤4.8KW, effectively reducing the power loss of Baoji sightseeing monorail during daily scenic operation.

 Core Performance Advantages of TCD07A Sightseeing Monorail Air Conditioner

Powerful Cooling & Heating for All-Season Scenic Operation

The TCD07A bus air conditioner delivers 16000Kcal/h cooling capacity and 12000Kcal/h heating capacity. Whether hot summer or cold winter in Baoji scenic areas, the unit quickly adjusts cabin temperature to create a comfortable riding experience for tourists. With 3200m³/h large evaporator air flow, air circulates evenly without cold or hot dead zones inside narrow mini train cabins.

 Flexible Custom Configuration for Different Scenic Demands

We provide 5 customizable versions of the TCD07A rooftop air conditioner to match all-year-round operation of sightseeing monorails like the Baoji mini train:

1. Single cooling only

2. Cooling + PTC heating

3. Cooling + plate heat exchanger

4. Cooling + PTC + plate heat exchanger

5. Cooling + PTC + plate heat exchanger + expansion tank

All configurations use mature R407C refrigerant, stable heat exchange performance and low maintenance cost for long-term outdoor scenic use.

 Vehicle-Grade Reliability for Outdoor Monorail Transit

Manufactured under IATF16949 automotive quality standards, the TCD07A sightseeing train air conditioner adopts IP67 waterproof core components. It passed strict vibration and bump tests to adapt to the bumpy running state of mini monorail, resisting wind, dust and rain exposure in open scenic environments.

Wide Application of TCHAIN TCD07A Small Vehicle Air Conditioner

Beyond the Baoji sightseeing mini monorail train, the TCD07A rooftop air conditioner is widely applied to multiple light transport vehicles:

• 6.0–7.0m sightseeing monorail / mini tourist train

• Small electric city shuttle bus

• School bus within 7 meters

• Scenic spot electric sightseeing car

• Light rail tourist carriage

If you are sourcing rooftop air conditioning units for 6–7m mini trains, light rail or small electric buses, TCHAIN TCD07A is a mature, cost-effective solution with proven real project cases like the Baoji monorail project. Contact our sales team to get customized parameters and bulk order quotations.
