A definitive technical guide to TCHAIN bus air conditioner error codes – ERR-1, ERR-E and ERR-F – including fault triggers, system responses and step-by-step corrective actions for commercial fleet maintenance technicians.
Every TCHAIN bus air conditioning system is equipped with an intelligent controller that uses pressure switches and on-board sensors as core fault detection points to monitor operating status in real time. When a parameter falls outside the normal operating range, the controller displays a specific error code on the driver-facing digital panel to alert operators before minor issues develop into full system failures.
This guide breaks down all official TCHAIN bus AC fault codes as documented in the manufacturer service manual, explaining what each code means, how the system reacts, and the standard procedure to resolve the issue.
All inspections involving refrigerant pressure circuits, electrical wiring and sensor calibration must be performed by trained and certified HVAC technicians. Drivers and fleet supervisors should record the exact error code displayed and forward it to the maintenance team. Do not attempt to bypass pressure switches or modify sensor circuits without professional authorisation.
Error Code | Fault Type | Digital Tube Position | System Reaction | Recommended Action |
|---|---|---|---|---|
ERR-1 | Refrigerant pressure fault | 1st tube from left | Cooling operation stops automatically; fan speed and fresh air signal remain unaffected | Inspect the refrigerant pressure system and resolve pressure abnormalities |
ERR-E | Sensor short circuit | 2nd / 3rd / 4th tube from left | System runs on last set mode (cooling does not stop) | Check sensor wiring circuit and sensor for short-circuit damage |
ERR-F | Sensor open circuit | 2nd / 3rd / 4th tube from left | Cooling output stops immediately | Check sensor wiring for breaks and replace faulty sensor if needed |
Note: When a fault occurs, the error code alternates with the room temperature reading on the display panel.
ERR-1 is triggered by the system pressure switch during cooling operation. Under normal conditions, the pressure switch maintains a 24V connection. When system pressure moves outside the safe range and the pressure switch opens, the fault is activated.
The cooling cycle shuts down automatically to protect the compressor.
The error code appears on the first digital tube from the left of the display.
Blower fan speed and fresh air damper signals remain fully operational and are not affected by this fault.
Once normal pressure is restored and maintained for more than 3 seconds, the controller automatically resumes normal operation without manual reset.
Connect pressure gauges to the high and low side service ports to verify actual system pressure.
Inspect the refrigerant circuit for overcharge, undercharge or leakage.
Check the condenser coil for dirt buildup and ensure condenser fans are operating correctly.
Test the pressure switch for continuity and inspect its wiring connection for looseness or corrosion.
After the fault is cleared, confirm that pressure stays within the normal range for at least 3 seconds to verify automatic recovery.
The TCHAIN AC controller uses three temperature sensors to regulate cooling performance: two defrost sensors and one room temperature sensor. A short circuit in any sensor triggers ERR-E, while an open (broken) circuit triggers ERR-F.

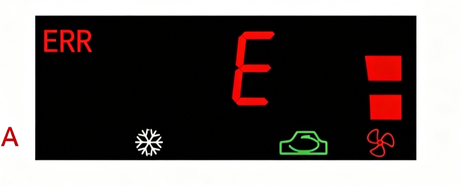

You can identify which sensor is affected by the position of the error code on the digital display, counting from the left:
2nd digital tube: Defrost Sensor 1
3rd digital tube: Room Temperature Sensor
4th digital tube: Defrost Sensor 2
ERR-E (Short Circuit): The defrost sensor 1 circuit is shorted. The system continues operating on the last set cooling mode.
ERR-F (Open Circuit): The defrost sensor 1 circuit is broken. Cooling output stops immediately for system protection.
Remedy: Inspect the defrost sensor 1 wiring harness for damaged insulation, loose connectors or corrosion. Test the sensor resistance against manufacturer specifications. Replace the sensor if it has failed. The controller will automatically return to normal operation once the fault is resolved.
ERR-E (Short Circuit): The room temperature sensor circuit is shorted. The system continues running on the last set operating mode.
ERR-F (Open Circuit): The room temperature sensor circuit is open. Cooling output shuts down immediately.
Remedy: Check the room temperature sensor circuit and connector for loose contacts or broken wires. Verify sensor functionality with a multimeter and replace if defective. Normal operation will resume automatically after the fault is eliminated.
ERR-E (Short Circuit): The defrost sensor 2 circuit is shorted. The system maintains operation on the previous mode setting.
ERR-F (Open Circuit): The defrost sensor 2 circuit is open. Cooling stops immediately.
Remedy: Inspect the defrost sensor 2 wiring loop and sensor element for failure. Repair or replace faulty components. The controller will recover automatically once the circuit returns to normal.
Follow these routine maintenance practices to minimise pressure and sensor-related error codes on TCHAIN bus AC systems:
Inspect refrigerant pressure and check for leaks at the start of each cooling season.
Clean the condenser coil regularly to prevent excessive pressure build-up.
Inspect sensor wiring harnesses and connectors during routine service, especially at points prone to vibration.
Verify pressure switch continuity during scheduled maintenance.
Keep a fault log recording error codes, ambient temperature and vehicle route to identify recurring issues early.
TCHAIN provides after-sales technical support and original spare parts for bus air conditioning product lines. For complex faults, warranty service or replacement parts, contact your regional TCHAIN service partner or visit www.tchainac.com for more information.
Understanding TCHAIN bus AC error codes allows maintenance teams to diagnose issues quickly and perform targeted repairs, reducing vehicle downtime and lowering operating costs. The ERR-1 pressure fault and ERR-E/ERR-F sensor faults are designed as protective early warnings – addressing them promptly not only restores cooling performance but also extends the service life of compressor and electronic components.
This guide is a technical reference based on official TCHAIN bus air conditioner service documentation. It is intended for use by professional maintenance technicians. Always refer to the model-specific service manual for your unit and follow standard safety procedures when working on refrigerant and electrical systems.
