Most bus OEM manufacturers and urban public transport operators struggle to source durable, low-power-consumption air conditioning units for 8.0–8.5-meter pure electric city buses. Improper internal component matching always leads to insufficient cooling, abnormal power drain and frequent maintenance downtime. Developed by TCHAIN (Foshan Shunde Taichang Vehicle Technology Co., Ltd.), the TCD08D electric bus air conditioner stands as a mature tailor-made HVAC solution exclusively for 8m–8.5m new energy coaches, with elaborately optimized internal structure for maximum thermal efficiency and long-term operational stability.
Founded in 1987, TCHAIN is a designated OEM supplier for BYD, Yutong, King Long, CRRC and Geely, certified with ISO9001-2015 and owned by Shengzhuo Holdings since 2021. This article thoroughly disassembles the full internal structure of the TCD08D electric bus air conditioner, explaining every core component’s function, layout and design advantages for bus designers and fleet purchasers.

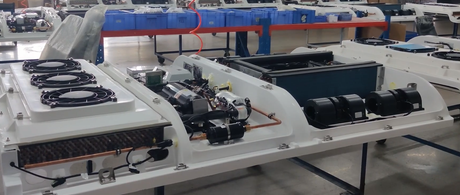

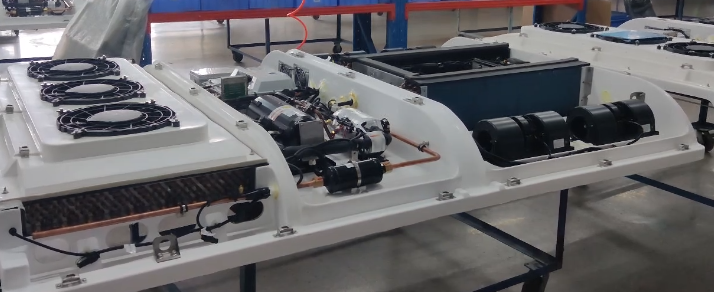

The whole TCD08D internal system is divided into six modular core assemblies, arranged in compact roof-mounted layout to save bus body installation space and improve airflow circulation efficiency.

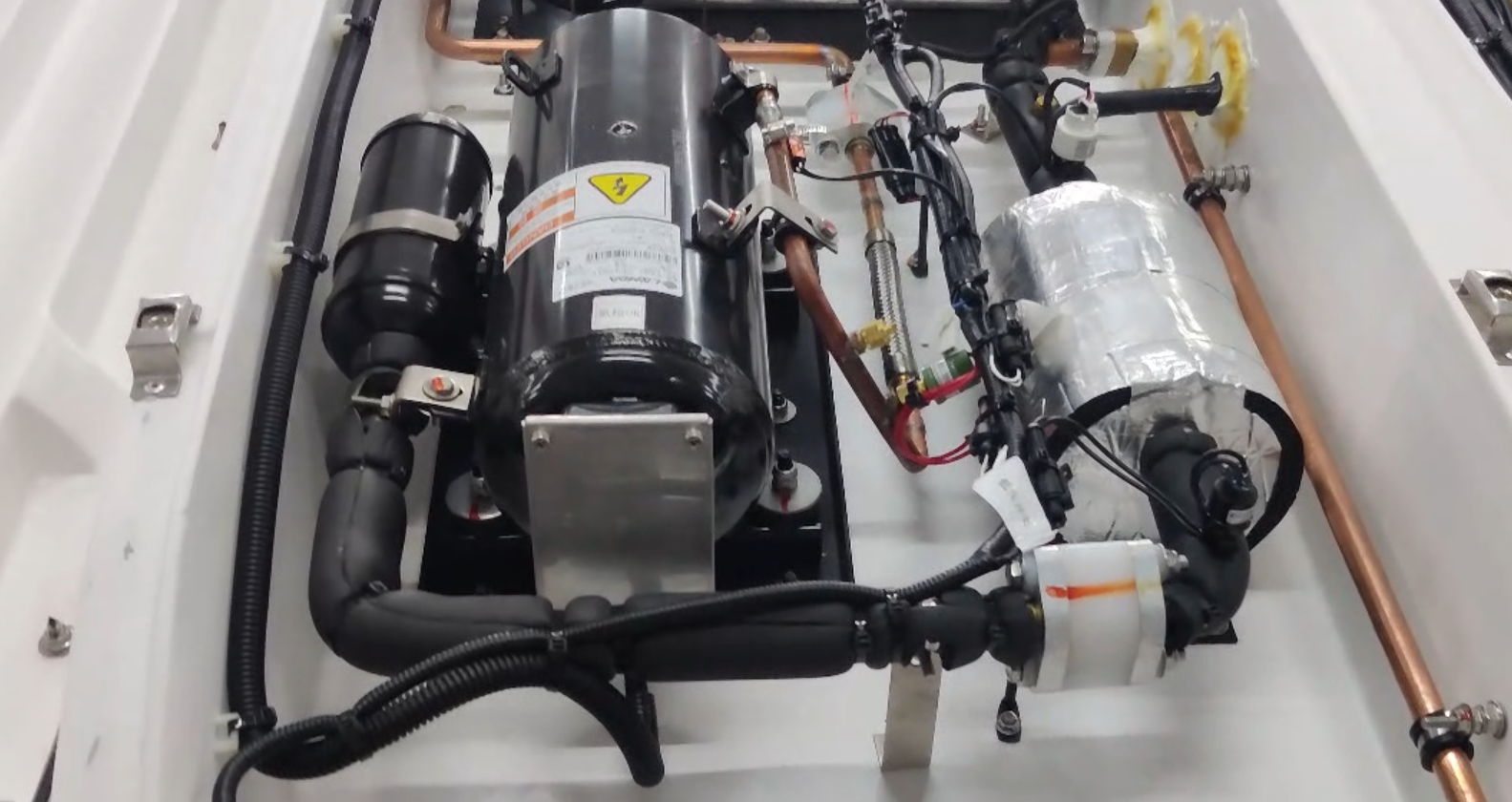

The scroll compressor is the power core of the whole TCD08D refrigeration cycle, specially customized for high-voltage DC new energy buses within 420V~720V working range.
Adopts fully sealed scroll structure instead of traditional reciprocating compressor; meshed fixed and moving scroll blades compress R410A refrigerant smoothly with 15% higher volumetric efficiency and less mechanical vibration.
Integrates over-voltage, under-voltage and overload sensors inside the compressor housing to cut off power automatically under abnormal bus battery output, avoiding core burnout caused by harsh road or unstable power supply.
Optimized internal bearing structure limits running noise below 65dB, effectively improving passenger riding comfort.

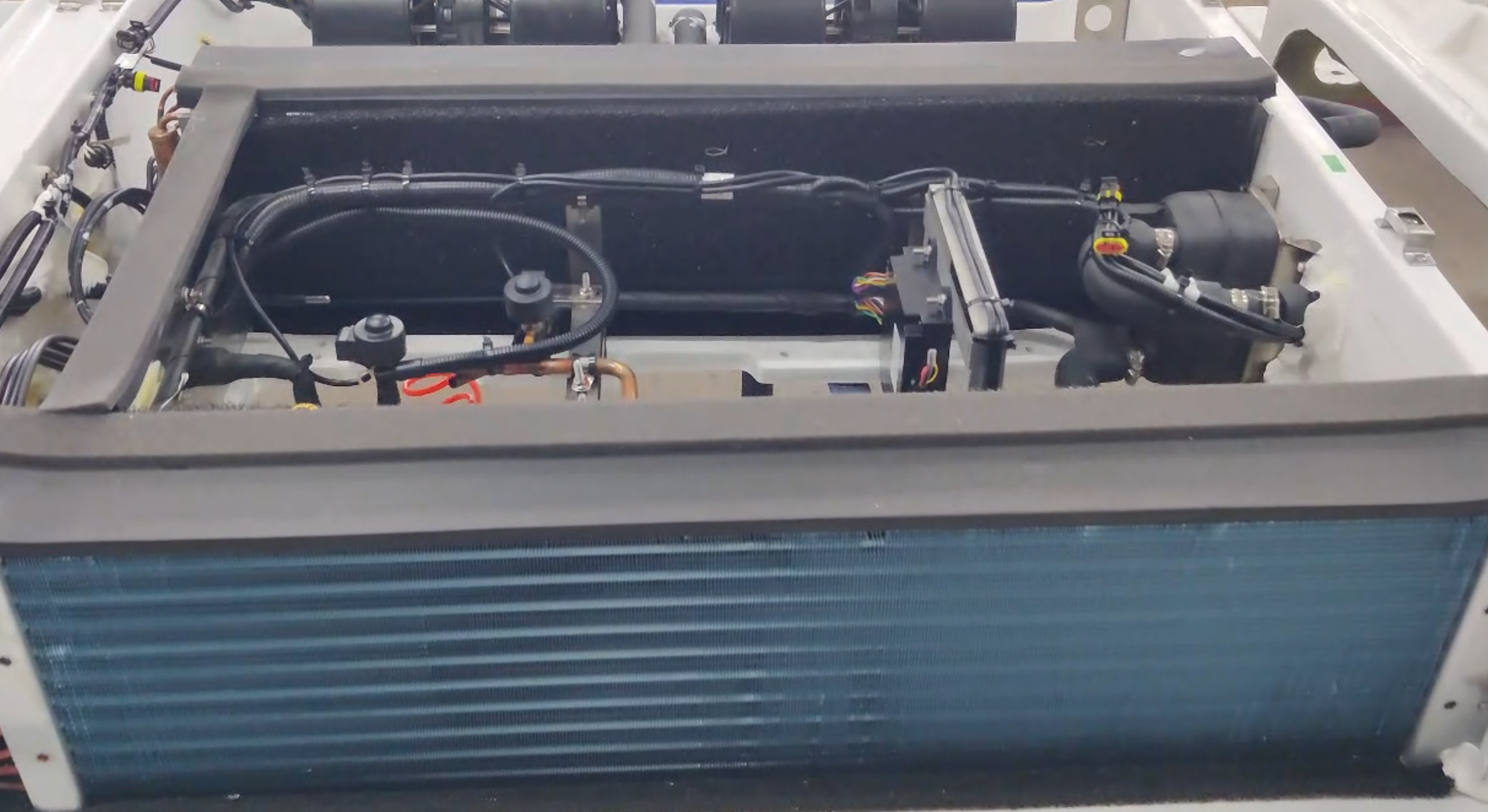

Positioned separately on the two sides of the internal unit frame, condenser and evaporator form the core heat exchange system, manufactured with hydrophilic aluminum fin + seamless copper tube as standard material.
Condenser (High-Pressure Heat Release Side): Releases high-temperature heat from compressed refrigerant to outside ambient air; all fin surfaces coated with anti-corrosion paint to resist salt fog and damp coastal weather.
Evaporator (Low-Pressure Heat Absorption Side): Absorb heat from circulating cabin air to realize cooling effect; compact fin spacing design enlarges heat exchange area without blocking airflow.
This integrated exchanger layout shortens internal refrigerant pipeline length and reduces system leakage risk greatly.

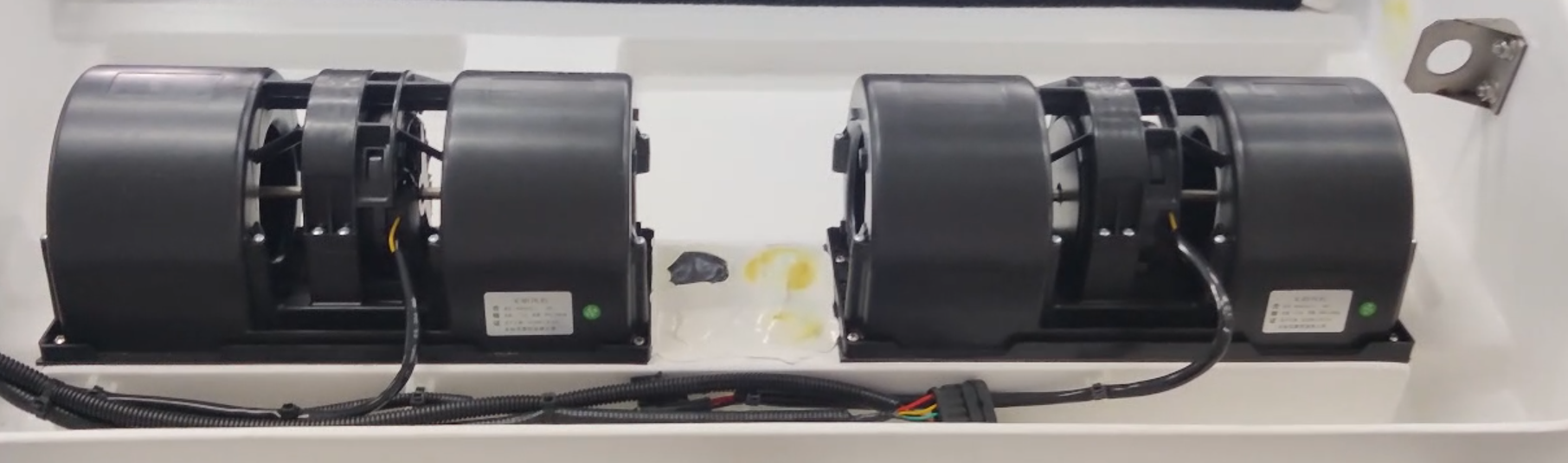

TCD08D internally configures two sets of three-stage centrifugal blowers , fixed on the evaporator air outlet cabin to deliver stable 3600m³/h rated airflow covering full passenger cabin of 8~8.5m bus.
Aerodynamically optimized fan blades with dynamic balance calibration to lower resonance and running noise.
PWM stepless speed regulation controlled by ECU to adjust airflow automatically based on real-time cabin temperature, saving extra power waste during partial-load working status.

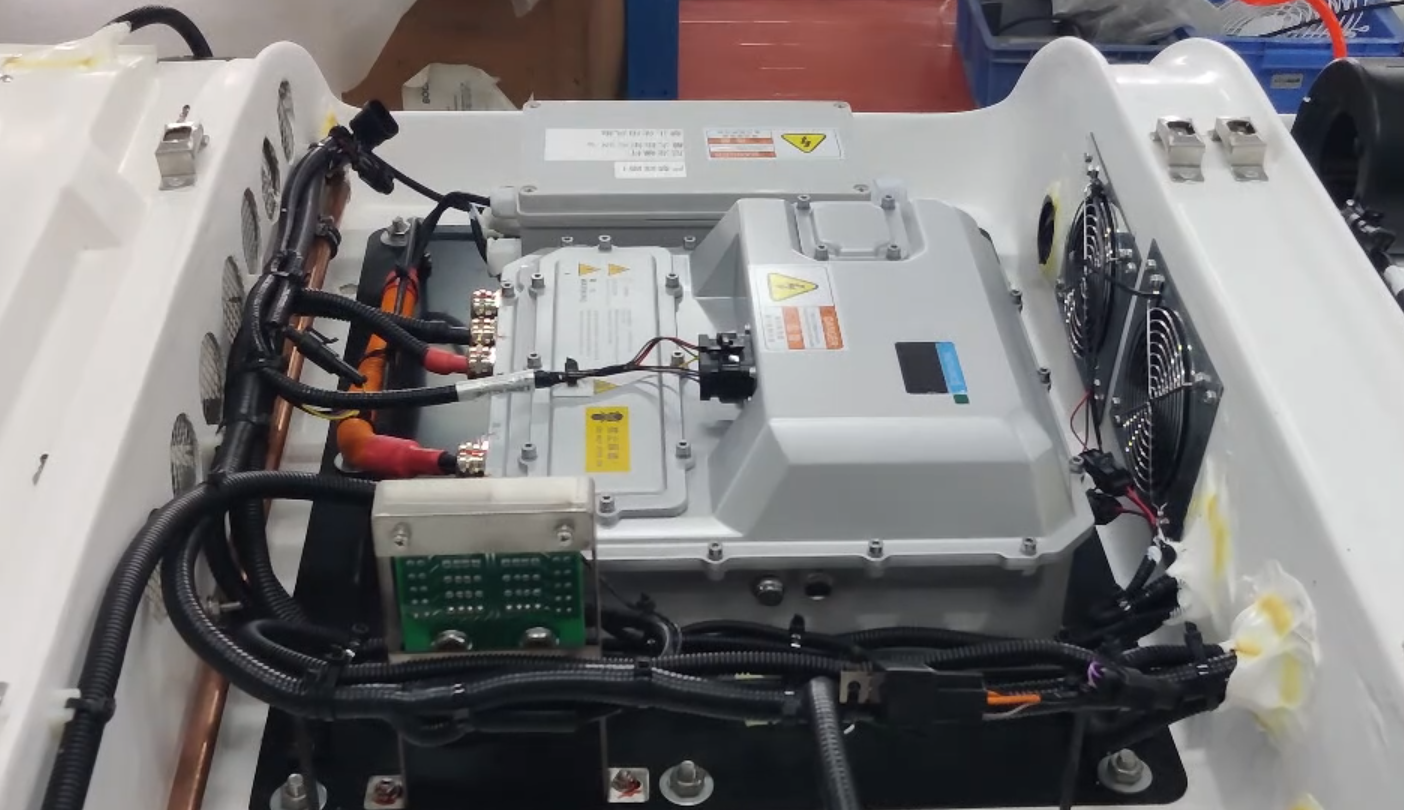

Installed at the front inner control cabin of TCD08D unit, the intelligent ECU acts as the central command center connecting all internal electrical parts and vehicle’s whole CAN bus system.
Core internal functions of ECU:
Real-time monitor running data of compressor, blowers and all electronic valves.
Automatic constant temperature control with ±1℃ precision inside passenger compartment.
Built-in fault self-diagnosis program to store error codes for quick after-sales inspection and maintenance.
Switch automatically between cooling, heating and heat pump modes per preset temperature parameters.
All internal refrigerant pipelines adopt oxygen-free seamless copper tube with full argon-arc welding craft to prevent R410A leakage. The internal valve group consists of expansion valves, solenoid valves and high-low pressure sensors:
Thermal expansion valves: Precisely meter refrigerant flow rate entering evaporator for stable cooling output.
Solenoid valves: Realize mode switching between cooling/heating/heat pump according to ECU command.
Pressure sensors: Continuously feedback system internal pressure data to ECU for safe operation protection.
Fixed between condenser and expansion valve inside the unit frame, the combination of drier filter and liquid receiver serves three critical protection purposes for whole refrigeration loop:
Remove moisture and solid impurities mixed in circulating refrigerant to avoid pipeline ice blockage and compressor internal abrasion.
Store redundant liquid refrigerant under different ambient temperature changes.
Prevent liquid slugging into scroll compressor, the top reason for core compressor damage in long-term operation.
Full Modular Internal Layout: All six core assemblies are independently modularized, enabling quick single-component replacement during maintenance and cutting bus fleet’s AC downtime by over 30%.
Lightweight Internal Matching: High-strength aluminum alloy inner frame plus compact component arrangement controls total unit weight below 260KG, reducing extra load for 8~8.5m electric bus’s power battery and helping extend whole vehicle driving range.
IP67 Waterproof Internal Electrical Structure: All ECU, blower motor and wiring components inside reach IP67 waterproof rating to cope with rainy, dusty and humid outdoor working environment.
Energy-saving Component Matching: Optimized internal airflow path and part parameter matching reduces comprehensive power consumption around 12% compared with ordinary peer AC models for same-size EV buses.
Domestic & overseas bus OEM manufacturers developing 8~8.5m pure electric city buses, tourist coaches and school buses.
Public transport companies updating existing urban bus fleet with new energy vehicles.
Special vehicle manufacturers producing 8m-class new energy special transit vehicles.
After more than 30 years of independent R&D accumulation of TCHAIN’s engineering center (Guangdong Provincial New Energy Bus AC Engineering Research Center certified in 2018), TCD08D’s refined internal structure becomes a reliable HVAC choice for global 8~8.5m electric bus projects. Its flexible optional configurations and high-efficiency component layout satisfy diverse working requirements from cold northern areas to high-temperature tropical regions.
If you need customized parameter adjustment, bulk quotation or technical drawing of TCD08D internal structure, please send your inquiry via official mailbox: export02@sdtaichang.com or visit our global official site: www.tchainac.com.
