As cities worldwide accelerate the transition to electric public transportation, understanding the electric bus air conditioner operating costs has become a top priority for fleet operators and transit managers. This guide breaks down exactly how to calculate AC electricity expenses, explains real-world power consumption figures, and shares actionable ways to reduce energy costs.
Unlike traditional diesel-driven bus AC systems that rely on engine power, electric bus air conditioners draw energy directly from the vehicle's high-voltage battery pack, typically operating within a DC 420V to 720V range.
Below are the standard rated power inputs for TCHAIN electric bus AC series, covering 6–12 meter vehicles:
Bus Length | TCHAIN Model | Rated Input Power | Cooling Capacity |
|---|---|---|---|
6.0–7.0m | TCD07A | ≤ 4.8 kW | 16,000 Kcal/h |

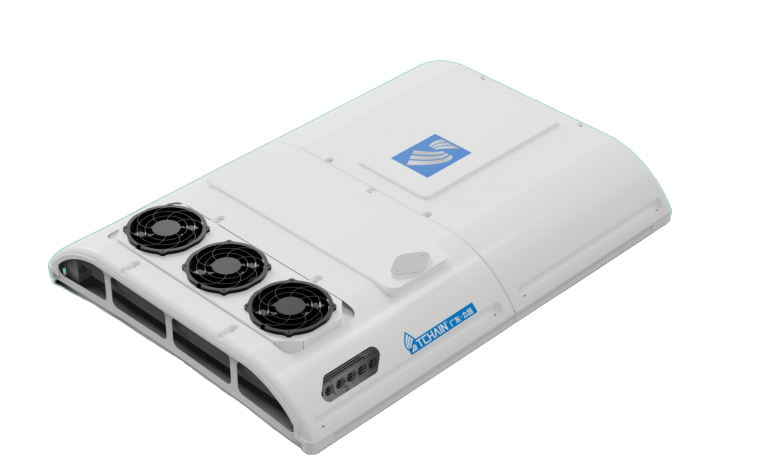

7.0–8.0m | TCD07D | ≤ 7.0 kW | 18,000 Kcal/h |
8.0–8.5m | TCD08D | ≤ 8.0 kW | 24,000 Kcal/h |
10.0–10.5m | TD40A | ≤ 9.0 kW | 28,000 Kcal/h |
10.0–12.0m | TCD12D | ≤ 10.0 kW | 28,000+ Kcal/h |
Key Note: The above values are maximum rated power. In actual daily operation, inverter-driven systems run at partial load most of the time, so real average power is 50–70% of the rated figure.
You can accurately estimate daily and monthly AC expenses using the standard industry calculation formula below.
plaintext
Daily Energy Consumption (kWh) = Rated Power (kW) × Daily Operating Hours × Duty Cycle
Daily Electricity Cost = Daily Energy Consumption × Local Electricity Rate ($/kWh)
Rated Power (kW): Maximum input power marked on the AC specification
Operating Hours: Total hours the AC system runs per day
Duty Cycle: Actual running ratio of the compressor (usually 50–70% for inverter systems)
Electricity Rate: Local commercial electricity price per kilowatt-hour
Take the TCD07D (7 kW rated) model running 12 hours a day as an example:
Step 1: Calculate daily energy consumption
Daily kWh = 7.0 kW × 12 h × 0.60 = 50.4 kWh/day
Step 2: Calculate daily electricity cost
Daily cost = 50.4 kWh × $0.15/kWh = $7.56/day
Step 3: Calculate monthly electricity cost (30 days)
Monthly cost = $7.56 × 30 = $226.80/month
Ambient Temperature: Every 5°C rise above 30°C increases consumption by 15–20%
Passenger Load: A full passenger load adds considerable heat (each person emits ~100W)
Door Opening Frequency: Frequent stops on urban routes raise cooling demand
Body Insulation: Well-insulated buses reduce energy use by 10–15%
Temperature Setting: Each 1°C lower setpoint increases consumption by about 6–8%
Efficiency Tip: TCHAIN electric bus AC systems adopt intelligent temperature control technology, which automatically adjusts cooling output according to ambient and cabin temperature, reducing overall energy consumption by about 15% compared with fixed-speed systems.
Electric bus AC is a major energy consumer on the vehicle, but it is far more efficient than diesel-driven AC systems.
In summer, bus air conditioning usually accounts for 25–35% of the total energy consumption of the whole vehicle. In extreme high-temperature environments, this proportion can rise to 40%.
System Type | Average Power | Monthly Estimated Cost (12h/day) |
|---|---|---|
Electric Bus AC (7 kW) | ~50 kWh/day | ~$225 |
Diesel Bus AC (equivalent cooling) | ~12 kW fuel equivalent | $450+ (diesel cost) |
Core Advantages of Electric AC Energy Efficiency:
No energy waste from engine idling
Inverter technology precisely matches power to actual demand
No mechanical transmission loss of belt-driven compressors
Heat pump mode available for efficient heating in winter
According to industry operation statistics, well-maintained electric bus AC systems:
Consume an average of 4–8 kWh per operating hour
Cost approximately $200–300 per month per bus in temperate climate zones
Reduce total air conditioning energy costs by 40–60% compared with diesel bus AC
Keep the cooling setpoint at 24–26°C (75–79°F) in summer
Raising the set temperature by 1°C saves about 7% of electricity
Use heat pump mode for heating in winter, which is 3 times more efficient than PTC electric heating
Pre-cool the cabin while the bus is charging at the depot
Adopt zone cooling for low-occupancy trips
Set temperature raise strategy during off-peak hours
Clean condenser coils monthly (saves 5–10% energy)
Replace cabin air filters every 2–4 weeks
Check refrigerant charge annually
Inspect door and window seals for air leakage
Prefer systems with EER > 3.5
Select inverter-driven compressor technology
Equip intelligent temperature control function
Models with heat pump capability have better all-year economy

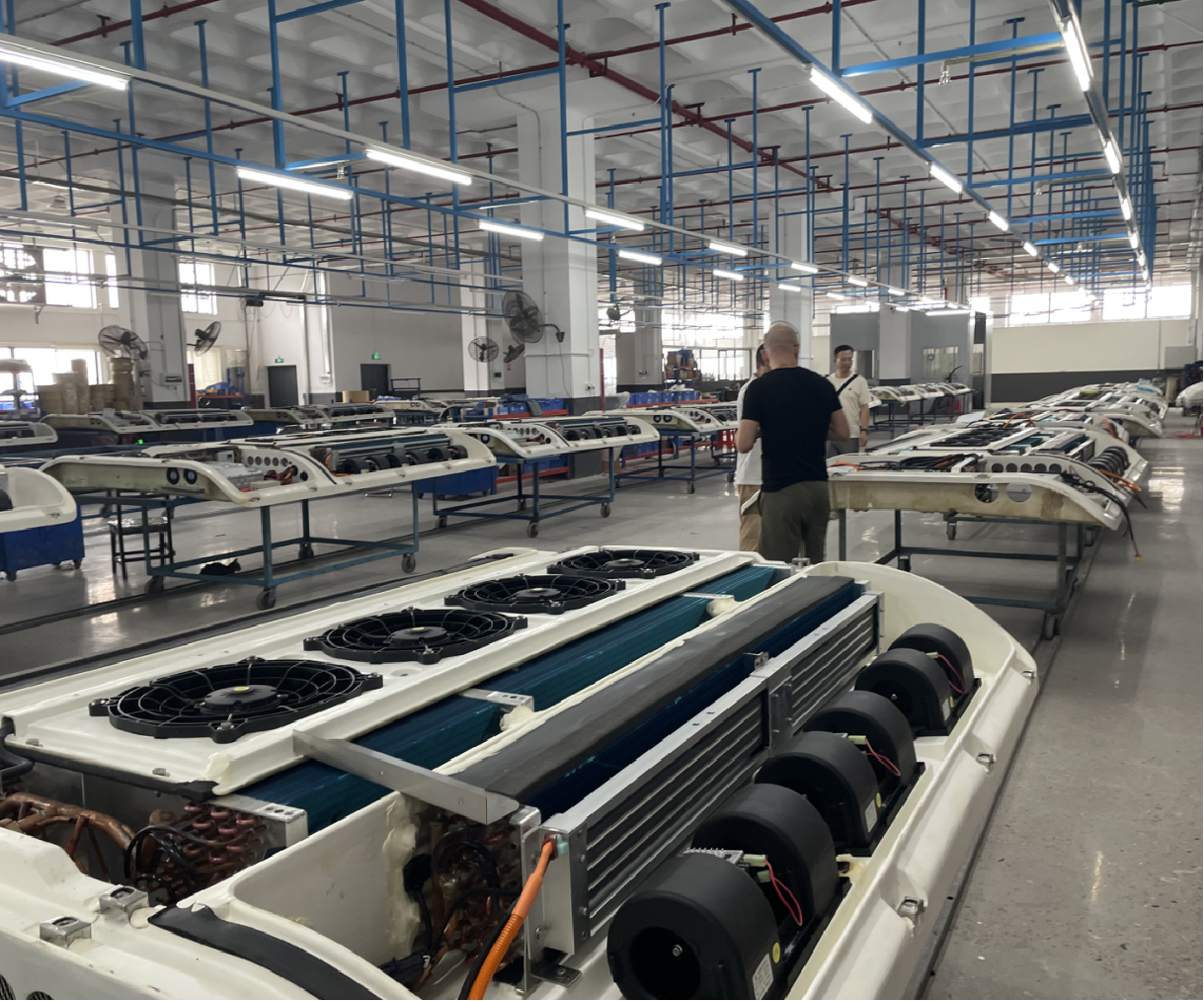

With nearly 40 years of experience in bus air conditioning R&D and manufacturing, TCHAIN (Foshan Shunde Taichang Vehicle Technology) is an OEM designated supplier for leading bus manufacturers including Yutong, King Long, CRRC, BYD and Geely.
✅ High Energy Efficiency: Industry-leading energy efficiency ratio, effectively reducing operating costs
✅ Stable & Reliable: ISO9001 certified manufacturing with strict quality control
✅ Intelligent Control: Automatic cooling adjustment to avoid unnecessary energy waste
✅ Eco-Friendly: Uses R410A refrigerant with zero ozone depletion potential
✅ Wide Adaptability: Covers 6–14 meter new energy buses with rich configuration options
✅ Global Service: Complete technical support and spare parts supply system
A: For an 8-meter bus running 12 hours a day, the daily electricity cost is about $5–10**, depending on local temperature and electricity price. For 12-meter large buses, the daily cost is about **$8–15.
A: In extreme high temperature weather, AC can reduce the range by 20–35%. Equipping high-efficiency AC systems and optimizing operation habits can effectively reduce the range impact.
A: With standard maintenance, it can reach 8–12 years or more than 20,000 operating hours. Compared with diesel-driven AC, it has fewer moving parts and lower failure rate.
A: Yes, there are mature retrofit schemes. For pure electric buses, upgrading high-efficiency AC can significantly reduce energy consumption and improve operation economy.
Electric bus air conditioner is one of the main energy consumption components of vehicles, usually consuming 4–10 kW of power during operation, accounting for 25–35% of the total vehicle energy consumption in summer. However, compared with traditional diesel-driven bus AC, it can save 40–60% of the total operating cost, which has obvious economic advantages.
By mastering the correct electricity cost calculation method, understanding the influencing factors of power consumption, and adopting scientific operation and maintenance strategies, fleet operators can effectively control AC energy expenses. Choosing high-efficiency electric bus AC products from professional manufacturers like TCHAIN is also a core way to achieve long-term energy saving and cost reduction.
If you want to know more about TCHAIN electric bus air conditioning solutions for 6–14 meter vehicles, welcome to contact our technical team for customized energy-saving solutions.
