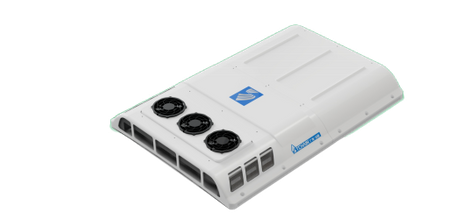

As cities worldwide accelerate bus fleet electrification, cabin cooling has become one of the biggest energy consumers on board — and one of the biggest threats to driving range. TCHAIN, a bus air conditioner manufacturer with nearly 40 years of industry experience, is putting the spotlight on its TCD08D roof-mounted electric bus air conditioner, a high-efficiency unit engineered specifically for 8–8.5 meter electric city and intercity buses operating in hot and humid climates.
In a diesel bus, the compressor draws power from the engine. In a battery-electric bus, every kilowatt-hour spent on cooling or heating comes directly out of the battery — reducing range, increasing charging cycles, and raising total cost of ownership for operators. That is why thermal management is now a decisive factor when transit agencies and bus OEMs select a bus air conditioning partner.
HVAC is among the largest auxiliary energy loads on an electric bus.
Poorly matched units force batteries to work harder in tropical heat above 40°C.
A correctly sized, high-efficiency roof-mounted unit protects both passenger comfort and driving range.
The TCD08D belongs to TCHAIN's electric bus air conditioner series,. Key specifications include:
Cooling capacity | 24,000 kcal/h |
Heating capacity | 20,000 kcal/h |
Applicable bus length | 8.0–8.5 m |
Refrigerant | R410A |
Operating voltage range | DC 420–720 V |
Max. input power | ≤ 8 kW |
Evaporator air flow | 3,600 m³/h |
Dimensions (L×W×H) | 2,750 × 1,866 × 273 mm |
Weight | ≤ 260 kg |
Bus operators in Southeast Asia, the Middle East and Africa face very different duty cycles from operators in northern China or Europe. The TCD08D platform therefore supports seven factory configurations, including:
Cooling only — for consistently hot regions
Cooling + PTC electric heating — for regions with cold winters
Cooling + plate-type heat exchanger — integrating with the vehicle's coolant loop
Heat pump + PTC — energy-efficient heating for electrified fleets
Cooling + plate exchanger + PTC + expansion tank / water pump — full thermal management packages

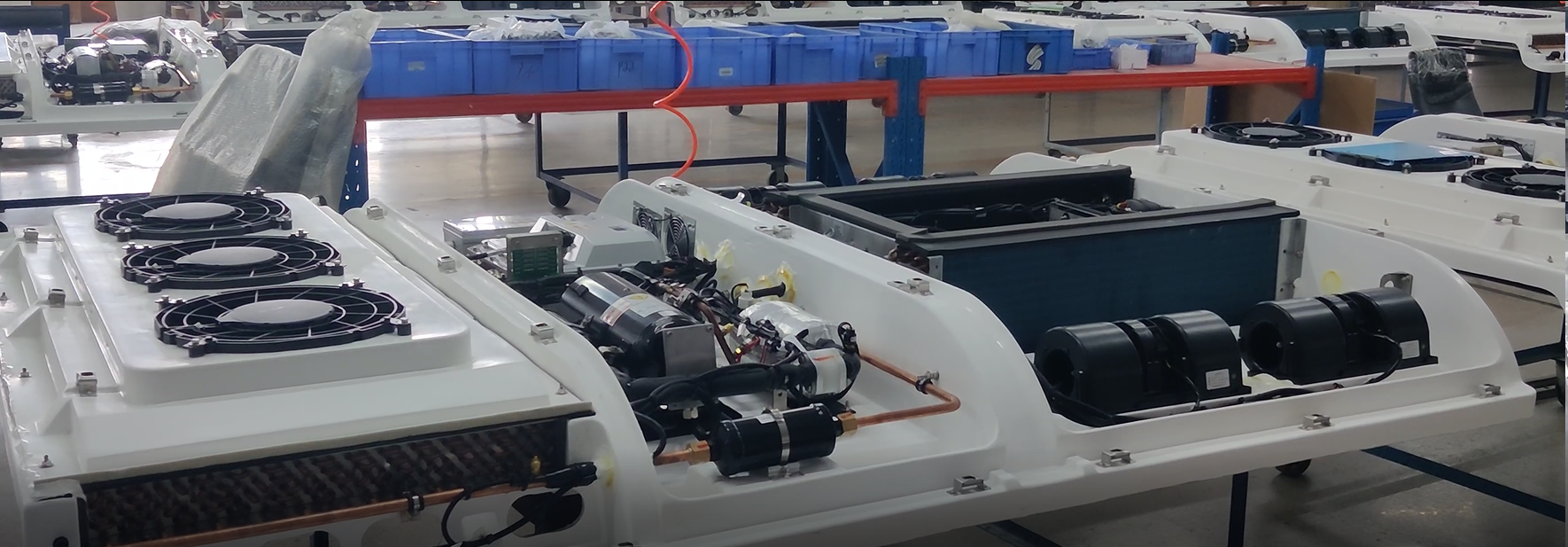

A rooftop bus air conditioner lives in the harshest environment on the vehicle — constant vibration, UV exposure, coastal salt air and monsoon rain. TCHAIN units use a fiberglass reinforced plastic (FRP) casing, a material choice that matters for fleet operators for three reasons:
Corrosion resistance: FRP does not rust, extending service life in coastal and high-humidity markets.
Weight reduction: a lighter shell reduces rooftop mass, supporting vehicle stability and energy efficiency.
Design freedom: low-profile, aerodynamic housings reduce drag and can be color-matched to the bus body.

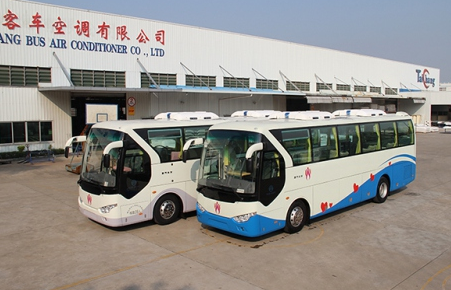

TCHAIN has supplied bus air conditioning and refrigeration units for nearly 40 years and serves as a designated supplier to leading bus manufacturers including Yutong, King Long, CRRC, BYD and Geely. The company offers more than 30 air conditioning models covering 6–14 m buses, all manufactured under an ISO 9001:2015 quality system, with electric bus air conditioners developed at its provincially certified new-energy bus AC engineering research center. Its units operate in real fleets from urban-rural electric bus routes in Ningbo, China, to school bus and public transport projects across the Middle East, Africa and Australia.
The TCD08D is designed for 8.0–8.5 meter electric city and intercity buses. TCHAIN's electric series also covers 6–7 m (TCD07A), 7–8 m (TCD07D), 10–10.5 m (TD40A) and 10–12 m (TCD12D) vehicles.
Because the TCD08D draws from the high-voltage DC 420–720 V system with a maximum input of 8 kW, correct sizing and high evaporator air flow (3,600 m³/h) help the unit reach set temperature quickly and cycle efficiently, minimizing range loss compared with oversized or under-specified units.
The unit uses R410A, a widely available refrigerant with zero ozone depletion potential, simplifying service and parts supply in export markets.
Yes. Depending on the destination market, the TCD08D can be ordered as cooling-only, cooling + PTC heating, with plate-type heat exchanger, or as a heat pump + PTC configuration for full-year climate comfort.
